Reference

Pavkovic, M., Pantano, L., Gerlach, C.V. et al. Multi omics analysis of fibrotic kidneys in two mouse models. Sci Data 6, 92 (2019).

Samples

Samples from two mouse models were collected. The first one is a reversible chemical-induced injury model (folic acid (FA) induced nephropathy). The second one is an irreversible surgically-induced fibrosis model (unilateral ureteral obstruction (UUO)). mRNA and small RNA sequencing, as well as 10-plex tandem mass tag (TMT) proteomics were performed with kidney samples from different time points over the course of fibrosis development. In the FA model, mice were sacrificed before the treatment (day 0) and 1, 2, 7, and 14 days after a single injection of folic acid. For the UUO model, mice were sacrificed before obstruction (day 0) and 3, 7, and 14 days after the ureter of the left kidney was obstructed via ligation. For both studies, kidneys were removed at each time point for total RNA isolation and protein sample preparation.

We will first explore the UUO transcriptome data.

Data sources

Doc URL
Total RNA for the experiment on Unilateral ureter obstruction (UUO) model https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE118339

Compute sample-wise statistics

dataType sampleName condition sampleNumber color mean median sd min perc05 Q1 Q3 perc95 max iqr
transcriptome day14_12 day14 12 #FF4400 577.40 1.32543 4020.5 0 0 0 227.855 2563.5 480841 227.855
transcriptome day14_13 day14 13 #FF4400 317.42 0.99779 2538.1 0 0 0 130.509 1371.5 258977 130.509
transcriptome day14_14 day14 14 #FF4400 439.77 1.19451 2758.5 0 0 0 190.710 2043.2 280431 190.710
transcriptome day14_15 day14 15 #FF4400 464.17 1.24853 5165.5 0 0 0 180.824 1855.8 693041 180.824
transcriptome day3_4 day3 4 #FFFFDD 736.30 1.00880 8571.4 0 0 0 197.157 2901.5 923949 197.157
transcriptome day3_5 day3 5 #FFFFDD 670.62 1.67158 7646.5 0 0 0 222.837 2687.5 874143 222.837
transcriptome day3_6 day3 6 #FFFFDD 657.52 1.02132 8424.8 0 0 0 181.088 2513.6 987332 181.088
transcriptome day3_7 day3 7 #FFFFDD 762.34 1.20783 11164.8 0 0 0 216.455 2781.6 1349892 216.455
transcriptome day7_10 day7 10 #FFDD88 747.06 1.72124 7495.7 0 0 0 242.263 3132.0 889506 242.263
transcriptome day7_11 day7 11 #FFDD88 507.88 1.01550 4781.0 0 0 0 185.765 2135.0 556133 185.765
transcriptome day7_8 day7 8 #FFDD88 724.46 1.47772 7201.4 0 0 0 236.473 3005.6 904431 236.473
transcriptome day7_9 day7 9 #FFDD88 756.34 1.99637 6429.8 0 0 0 291.494 3264.0 733494 291.494
transcriptome normal_1 normal 1 #BBFFBB 801.47 0.95108 11585.8 0 0 0 123.308 2740.6 1259045 123.308
transcriptome normal_2 normal 2 #BBFFBB 585.72 0.00000 8237.1 0 0 0 88.908 2035.8 912206 88.908
transcriptome normal_3 normal 3 #BBFFBB 638.52 0.77229 9846.7 0 0 0 95.103 2149.2 1101035 95.103

Distribution of raw counts

Distribution of raw counts

Distribution of raw counts

The distribution of raw counts is not very informative, because the range is defined by some outlier, i.e. a gene having a huge number of reads. Even with strong zoom on the abcsissa range from 0 to 500, the histogram shows a steep drop in the first bins.

Distribution of raw counts - truncated abscissa

Distribution of raw counts

Distribution of raw counts

Log2-transformed counts

A typical approach is to normalise the counts by applying a log2 transformation . This however creates a problem when the counts of a given gene in a given sample is 0. To circumvent this, we can add an epsilon (\(\epsilon = 0.1\)) before the log2 transformation.

Two-columns test

contents 1 …

pas l’air de marcher …

Box plot comment

We notice an obvious problem: the vast majority of counts is very small. This can result from different causes, which will not be investigated in this context.

Gene filtering

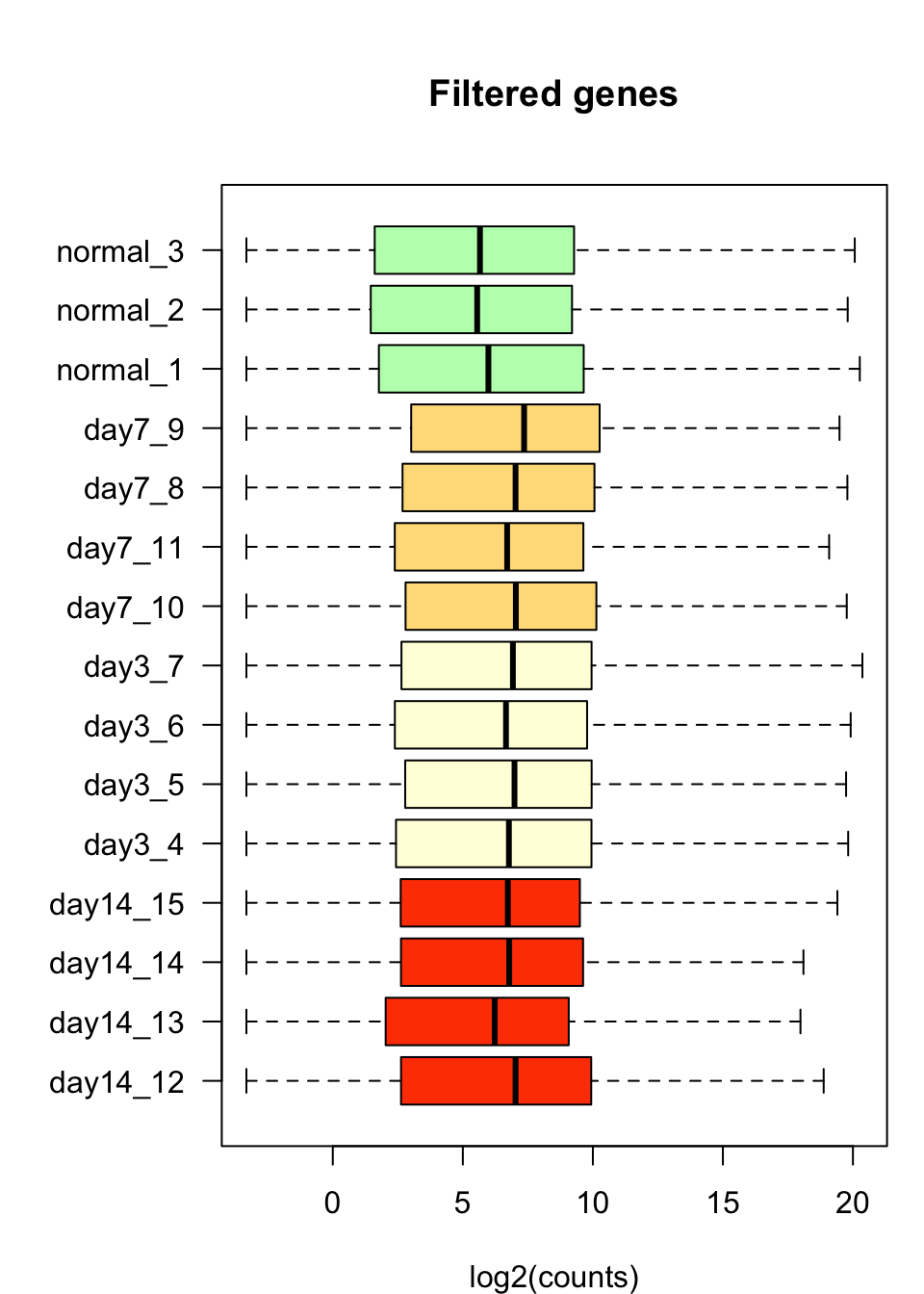

We filtered out all the genes whose maximal count value across all samples was lower than 10. Among the 46679 genes from the raw count table, 20851 were considered undetected according to this criterion. We use the remaining 25828 genes for the subsequent analyses.

Normalisation (more precisely: scaling)

Before going any further, it is important to ensure some normalisation of the counts, in order to correct for biases due to inter-sample differences in sequencing depth.

For the sake of simplicity, we will use here a very simple criterion: median-based normalisation. The principle is to multiply the counts of each sample by a scaling factor in order to bring each sample to the same median count.

Scatter plots

We can also inspect the distribution of counts per sample with the plot() function.

Combinations

Exporting the result

We export the pre-processed data in separate tables for further reuse.

#### Save tables  ####

outfiles <- vector()

## Raw counts, all the variables
outfiles["raw"] <- file.path(outdirs[parameters$datatype],
                                    paste0(parameters$dataset,
                                           "_", parameters$datatype,
                                           "_raw.tsv.gz"))
write.table(x = format(digits = 3, big.mark   = "", decimal.mark = ".", rawValues),
            dec = ".",
            file = gzfile(outfiles["raw"], "w"),
            quote = FALSE, sep = "\t")

## Log2-transformed counts, all the genes
outfiles["log2"] <- file.path(outdirs[parameters$datatype],
                                    paste0(parameters$dataset,
                                           "_", parameters$datatype,
                                           "_log2.tsv.gz"))
write.table(x = format(digits = 3, big.mark   = "", decimal.mark = ".", log2Values),
            dec = ".",
            file = gzfile(outfiles["log2"], "w"),
            quote = FALSE, sep = "\t")

## Filtered genes only, log2-transformed counts
outfiles["filtered"] <- file.path(outdirs[parameters$datatype],
                                    paste0(parameters$dataset,
                                           "_", parameters$datatype,
                                           "_log2_filtered.tsv.gz"))
write.table(x = format(digits = 3, big.mark   = "", decimal.mark = ".", log2Filtered),
            dec = ".",
            file = gzfile(outfiles["filtered"], "w"),
            quote = FALSE, sep = "\t")

## Filtered genes only, log2-transformed and standardized counts
outfiles["standardised"] <- file.path(outdirs[parameters$datatype],
                                    paste0(parameters$dataset,
                                           "_", parameters$datatype,
                                           "_log2_norm.tsv.gz"))
write.table(x = format(digits = 3, big.mark   = "", decimal.mark = ".", log2Standardised),
            dec = ".",
            file = gzfile(outfiles["standardised"], "w"),
            quote = FALSE, sep = "\t")

## Metadata
outfiles["metadata"] <- file.path(outdirs[parameters$datatype],
                                    paste0(parameters$dataset,
                                           "_", parameters$datatype,
                                           "_metadata.tsv"))
write.table(x = metadata,
            file = outfiles["metadata"] ,
            quote = FALSE, sep = "\t")






## Build a table to display the links in the report
fileTable <- data.frame(outfiles)
fileTable$basename <- basename(fileTable$outfiles)
fileTable$dirname <- dirname(fileTable$outfiles)
fileTable$link <- paste0("[", fileTable$basename, "]", "(", fileTable$outfiles, ")")

## Print the directories
kable(t(as.data.frame.list(outdirs)), col.names = "Directories", caption = "Directories")
Directories
Directories
main .
data ./data
results ./results
transcriptome ./results/transcriptome
Output files
Contents Link
raw uuo_transcriptome_raw.tsv.gz
log2 uuo_transcriptome_log2.tsv.gz
filtered uuo_transcriptome_log2_filtered.tsv.gz
standardised uuo_transcriptome_log2_norm.tsv.gz
metadata uuo_transcriptome_metadata.tsv
